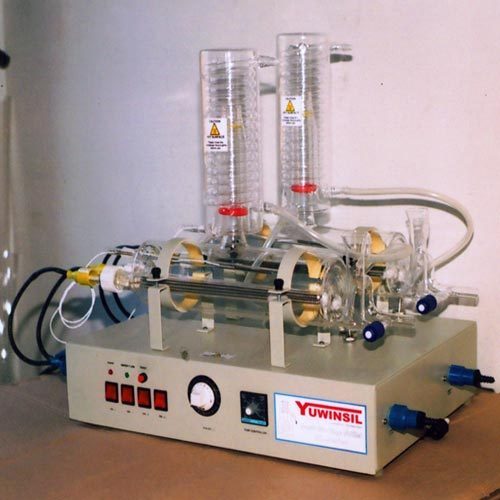

Quartz Glass Distillation

Quartz Glass Distillation
Quartz Glass Distillation
Product Code : BANI - 581
Brand Name : BANI
Product Description

Quartz Glass Distillation

Features:

1. Replaceable Quartz Heater for easy maintenance

2. Built - in Triple Safety: a) Gate Valve: to conserve cooling water in case of power failure.

b) Flow Switch: Safety for the equipment. Unit shuts off when cooling water to condenser stops.

c) Pressure Temperature Switch (PTS): The Boiler is equipped with PTS.  If water level falls below the heater, the unit switches off.

3. Quartz PTFE Stopcock - For easy draining and cleaning of boiler.

4. Quartz Threaded connection - For easy assembly and maintenance.

Specifications:

Voltage: A.C 50Hz - 220/230V.

Quality of Distilled water: Pyrogen free, Reagent Grade 1

Conductivity: 0.1 - 0.5 μS/cm.



TECHNICAL SPECIFICATIONS



Output Capacity

1.0 ltr/hr

2.0 ltrs/hr

3.0 ltrs/hr

4.0 ltrs/hr

Power Rating (total)

2 KW

3.5 KW

5.0 KW

9.0 KW**

Cooling Water Consumption

40 ltrs/hr

65 ltrs/hr

100 ltrs/hr

150 ltrs/hr
